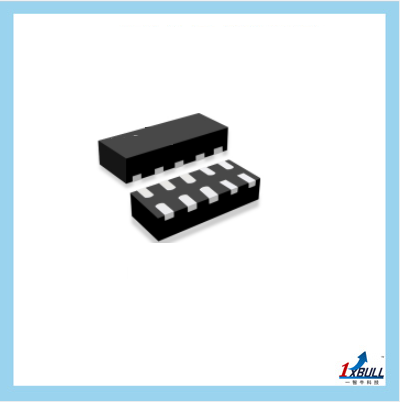

DFN2510-10

Feature

n
Small Body Outline Dimensions:

n   Solid-state silicon-avalanche technology

n   Low operating and clamping voltage

n   Up to four I/O Lines of Protection

n   Ultra low capacitance: 0.2pF typical(I/O to I/O)

n   Low Leakage

n   Low operating voltage:5V

n   Flow-Through design

IEC COMPATIBILITY (EN61000-4)

n   IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact)

n   IEC 61000-4-4 (EFT) 40A(5/50ns)

n   IEC 61000-4-5 (Lightning)3A（8/20uS）

Mechanical Characteristics

n   DFN-2L package

n   Molding compound flammability rating:UL

n   94V-0

n   Marking: Marking Code

n   Packaging: Tape and Reel per EIA 481

n   RoHS/WEEE Compliant

Applications

n   Digital Visual Interface(DVI)

n   MDDI Ports

n   DisplayPortTM Interface

n   PCI Express

n   High Definition Multi-Media Interface(HDMI)

n   eSATA Interfaces
