Applications
n Mobile Device
n Handheld Device
n LowProfile Device, LCD.
Features
n Common Mode Filter for high Current Capacity
n Fit for power line & signal line circuit
n To help you go pass the CE/FCC standard
n Lower cost
Operating & Storage Condition :
n Operating Temp : Stand Type:-40 to +125°C
n Storage Life Time:12 months @25°C, RH 65%
n Storage Temp : Stand Type -40 to +125°C
Product Identification
① ② ③ ④ ⑤

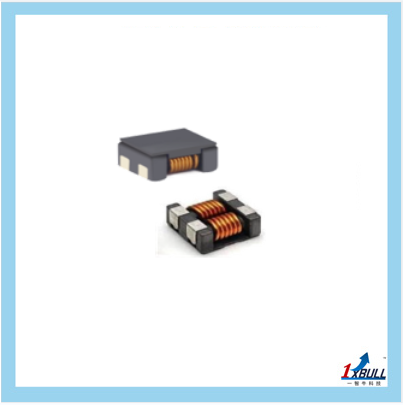

① Type: Common mode filter for Power line

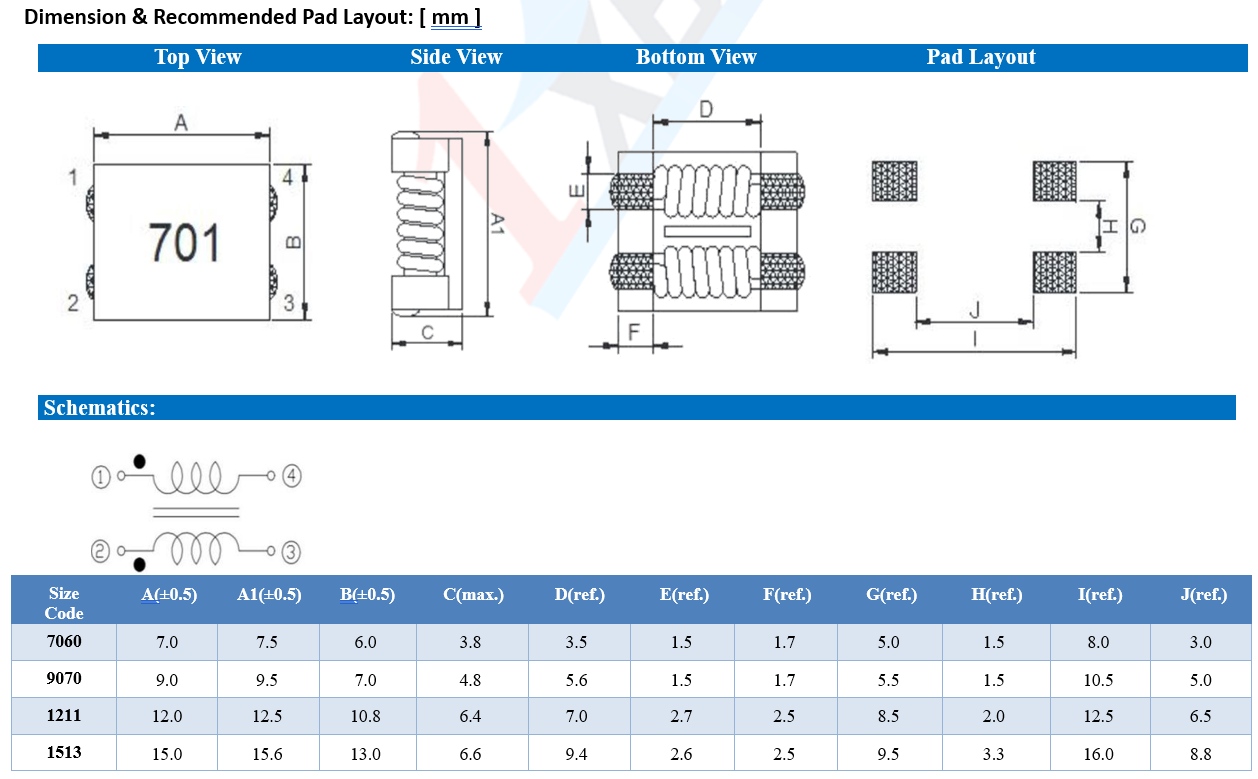

② External Dimensions(L×W)(mm):12.0*11.0
③ Impedance:102=1000Ω
④ Rating Current: 060=6.0A
⑤ M=SMT，P=Power
Part No. | /Z/ PIN 1-4 & 2-3 @100MHz (Ω) |
Rated Voltage (V) max. |
Insulation Resistance (MΩ) min. | DCR PIN 1-4 & 2-3 (mΩ) max. |
IDC (A) max. | |
min. | typ. | |||||
CM7060Z041C150MP | 40 | 70 | 80 | 10.0 | 5.0 | 15.0 |
CM7060Z101C090MP | 100 | 140 | 80 | 10.0 | 10.0 | 9.0 |
CM7060Z301C050MP | 225 | 300 | 80 | 10.0 | 10.0 | 5.0 |
CM7060Z501C050MP | 275 | 500 | 80 | 10.0 | 10.0 | 5.0 |
CM7060Z601C040MP | 500 | 700 | 80 | 10.0 | 15.0 | 4.0 |
CM7060Z701C040MP | 500 | 700 | 80 | 10.0 | 15.0 | 4.0 |
CM7060Z102C030MP | 800 | 1020 | 80 | 10.0 | 17.0 | 3.0 |
CM7060Z132C025MP | 910 | 1300 | 80 | 10.0 | 21.0 | 2.5 |
CM7060Z272C010MP | 2000 | 2700 | 80 | 10.0 | 63.0 | 1.0 |
CM7060Z302C009MP | 2500 | 3000 | 80 | 10.0 | 75.0 | 0.9 |
CM9070Z301C060MP | 225 | 300 | 80 | 10.0 | 6.0 | 6.0 |
CM9070Z501C055MP | 450 | 500 | 80 | 10.0 | 8.0 | 5.5 |
CM9070Z701C050MP | 500 | 700 | 80 | 10.0 | 10.0 | 5.0 |
CM9070Z102C040MP | 750 | 1000 | 80 | 10.0 | 13.0 | 4.0 |
CM9070Z222C030MP | 1700 | 2200 | 80 | 10.0 | 50.0 | 3.0 |
CM9070Z272C020MP | 2000 | 2700 | 80 | 10.0 | 86.0 | 2.0 |
CM1211Z800C100MP | 80 | 230 | 125 | 10.0 | 2.0 | 10.0 |
CM1211Z701C080MP | 500 | 700 | 125 | 10.0 | 6.0 | 8.0 |
CM1211Z801C080MP | 600 | 800 | 125 | 10.0 | 8.0 | 8.0 |
CM1211Z102C060MP | 750 | 1000 | 125 | 10.0 | 14.0 | 6.0 |
CM1211Z222C018MP | 2200 | 2500 | 125 | 10.0 | 35.0 | 1.8 |
CM1211Z272C015MP | 2300 | 2700 | 125 | 10.0 | 50.0 | 1.5 |
CM1513Z301C130MP | 225 | 300 | 80 | 10.0 | 5.0 | 13.0 |
CM1513Z301C150MP | 225 | 300 | 80 | 10.0 | 4.0 | 15.0 |
CM1513Z551C100MP | 400 | 550 | 80 | 10.0 | 5.0 | 10.0 |
CM1513Z551C120MP | 400 | 550 | 80 | 10.0 | 6.0 | 12.0 |
CM1513Z701C100MP | 500 | 700 | 80 | 10.0 | 7.0 | 10.0 |
CM1513Z102C090MP | 800 | 1000 | 80 | 10.0 | 10.0 | 9.0 |
CM1513Z152C050MP | 1200 | 1500 | 80 | 10.0 | 23.0 | 5.0 |
