Spread Spectrum OSC&IC 2in1

Features

      ●      FCC approved EMI attenuation

●      Proprietary Low EMI Phase Modulated Sa Φic™ Oscillator

●      Modulation Output Clock Enable/Disable Function

      ●       RoHS compliant & Pb free

      ●     AEC-Q100 compliant (option)

      ●      Frequency range 15MHz ~ 40MHz

        ●      Supply voltage 1.62V ~ 3.63V

        ●      CMOS output

        ●      Operating temperature -40~125ºC

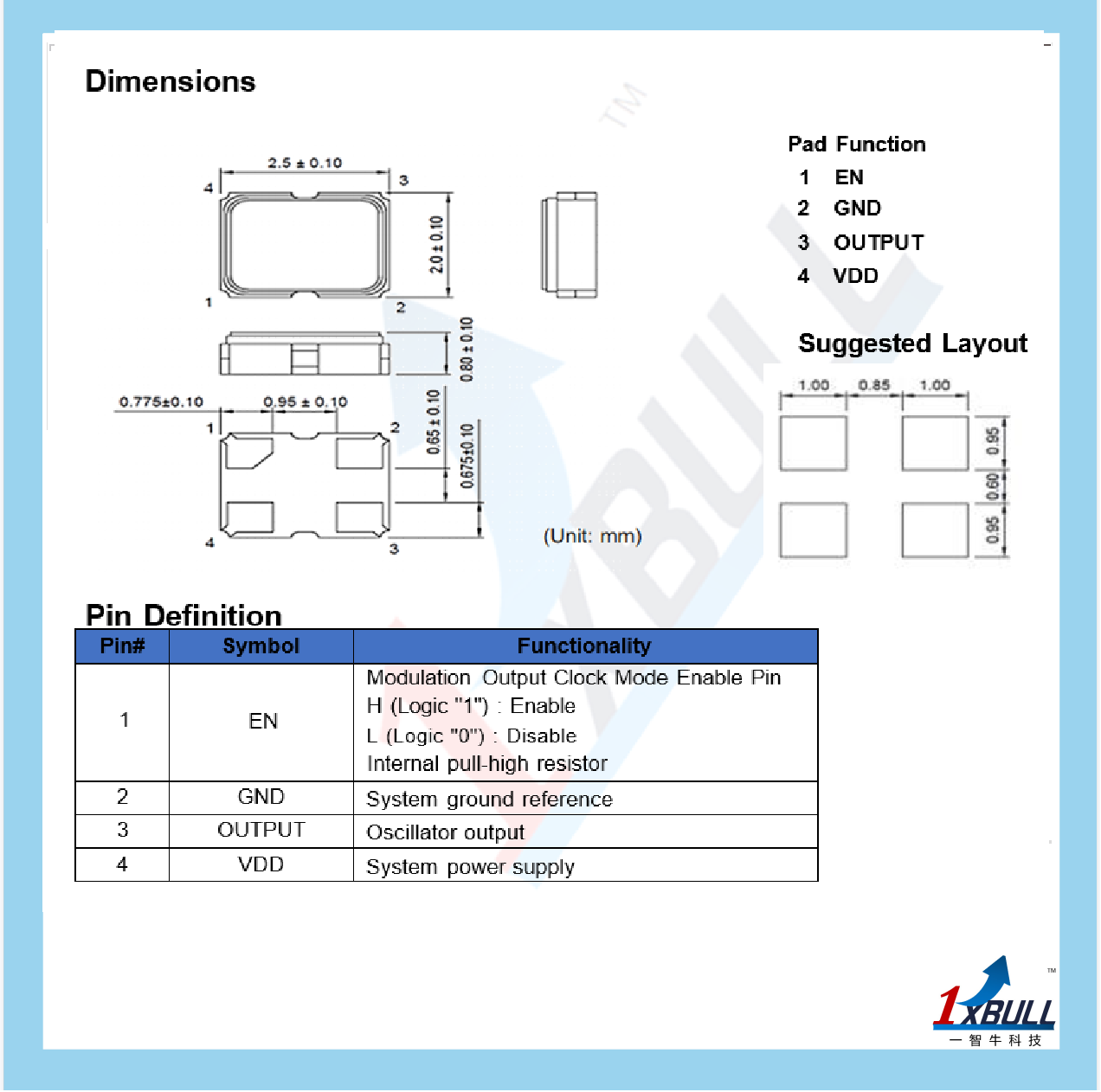

  ●      SMD seam sealing ceramic package 2.5mm x 2.0mm

应用举例：汽车电子LCD时钟展频

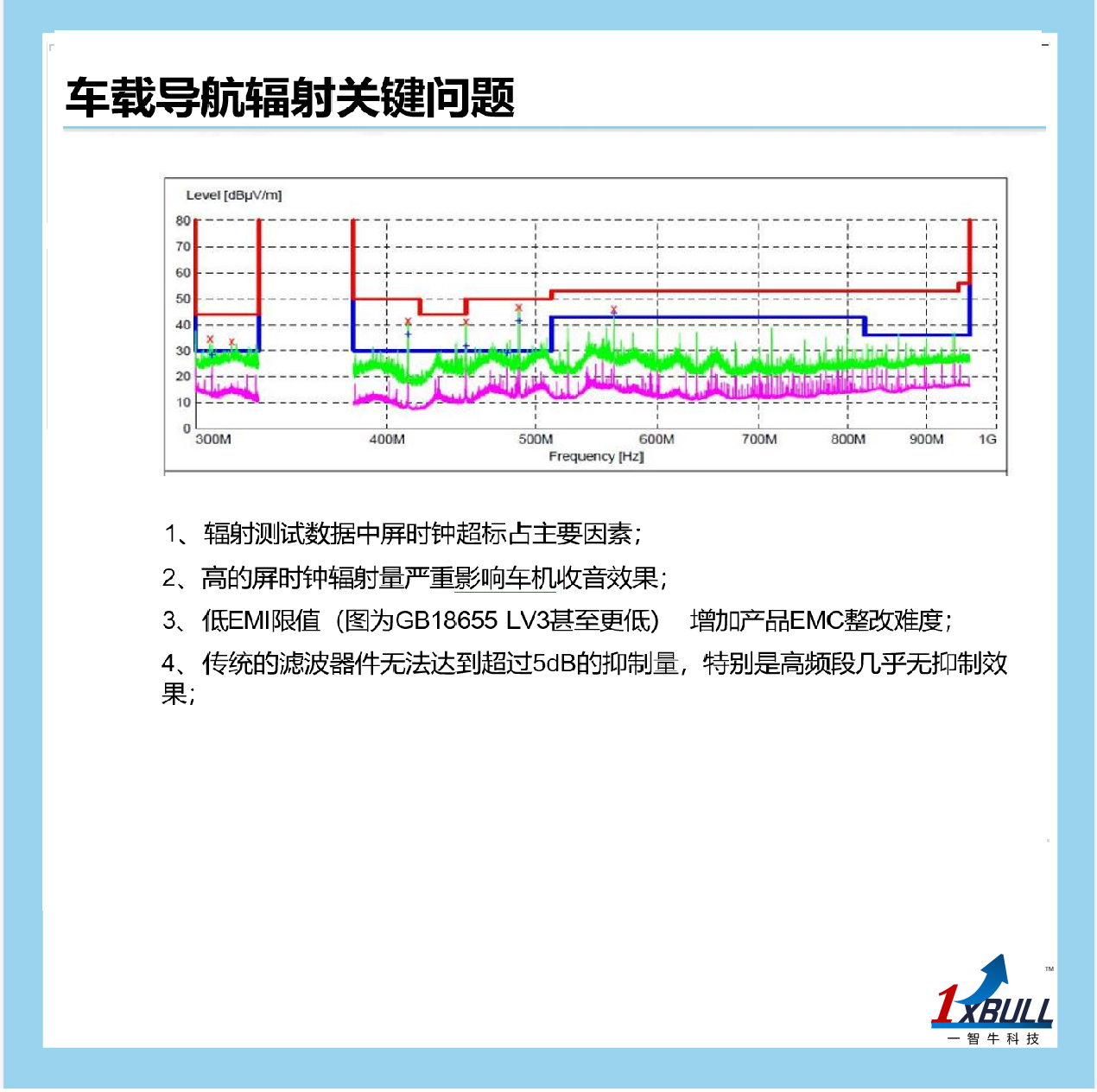

整改前电波暗室内数据

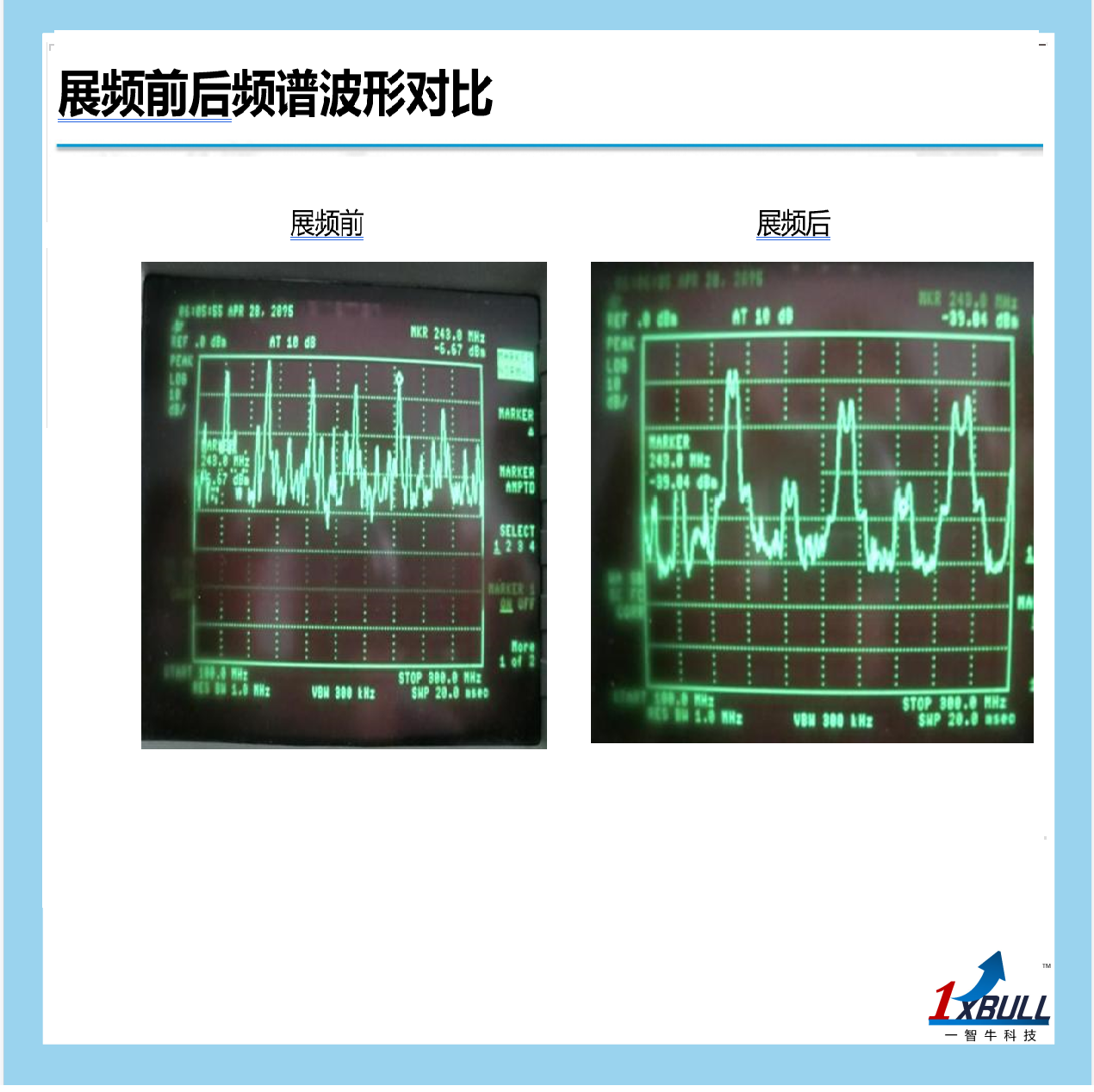

展频后频谱仪观察

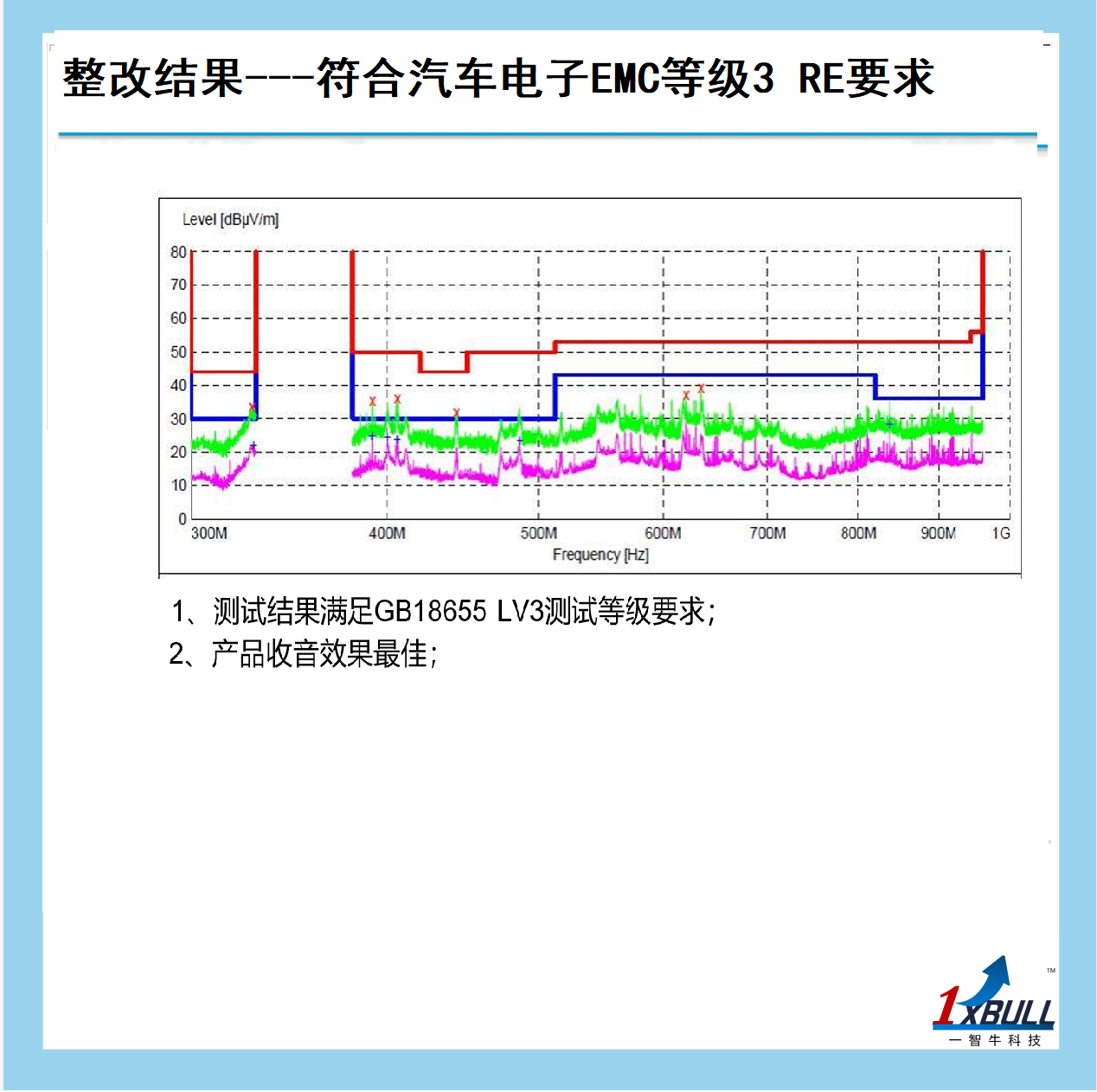

展频后电波暗室整改效果：
