Features
• FCC approved method of EMI attenuation • Proprietary “SaΦic™” technology, a non-PLL phase controlled Active EMI management architecture
• Generates a 1X low EMI Phase Modulated replication of the input signal
. • Vdd 1.65V - 2.0V 10 MHz to 38 MHz • Vdd 2.5V - 3.6V 10 MHz to 38 MHz
• Multiple Deviation Selections
• Minimum frequency deviation selection capability
• Power Down Mode

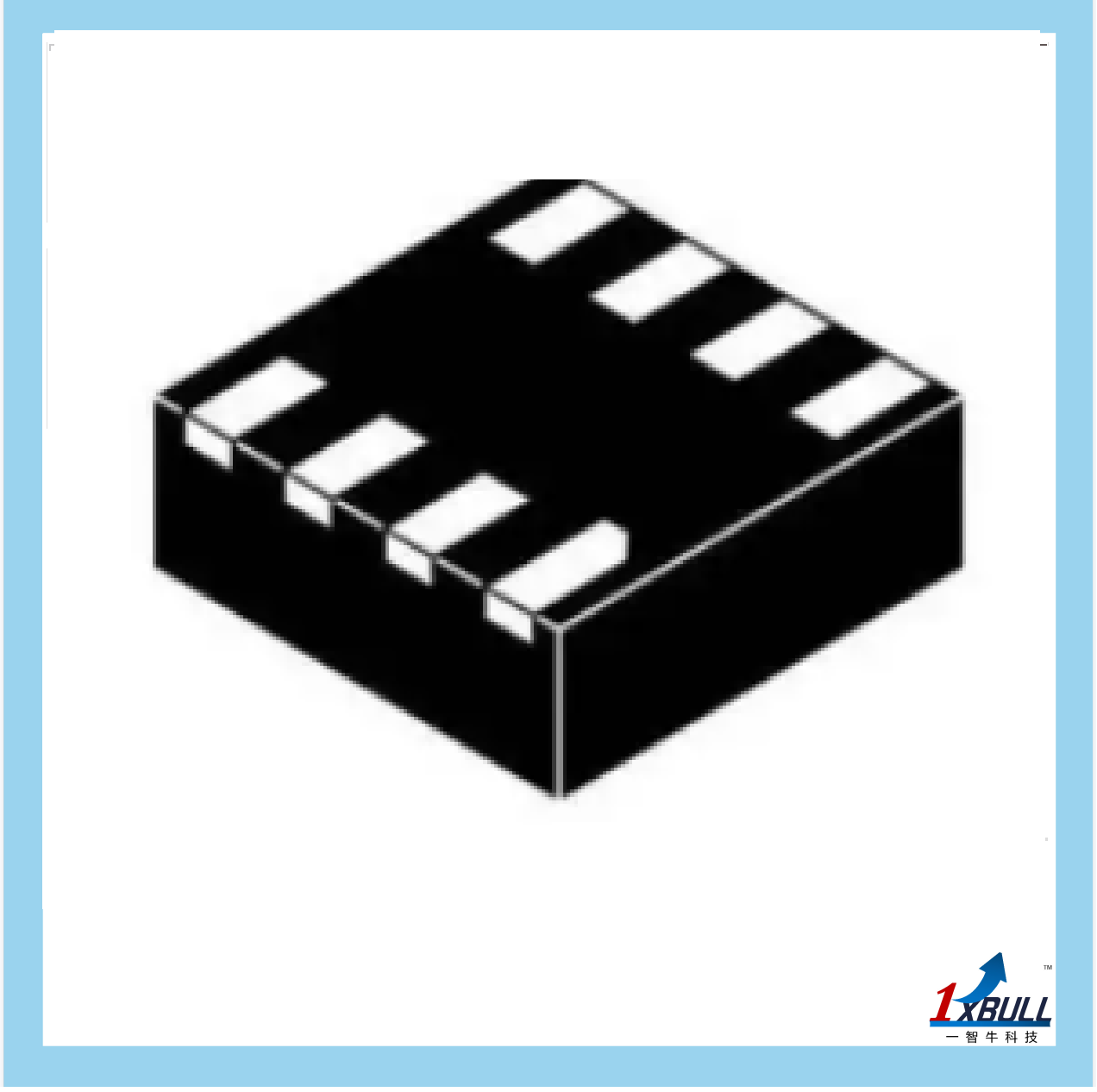

• 8-pin WDFN package
• Supports automotive reliability standard: AEC-Q100 Grade 1 and Grade 2 certified
Ordering Information
|
Part Number |
Temp. Grade Indicator |
Temp Grade |
Temp Range |
IC Marking |
IC Package |
Tape |
|
EX615C |
C |
Commercial |
0°~70°C |
304C |
2mm 8L WDFN |
4,000 pcs / Reel |
|
EX615I |
I |
Industrial |
-20°~85°C |
304I |
||
|
EX615E |
E |
Automotive |
-40°~105°C |
304E |
||
|
EX615A |
A |
Automotive |
-40°~125°C |
304A |
应用举例：某摄像头EMI超标

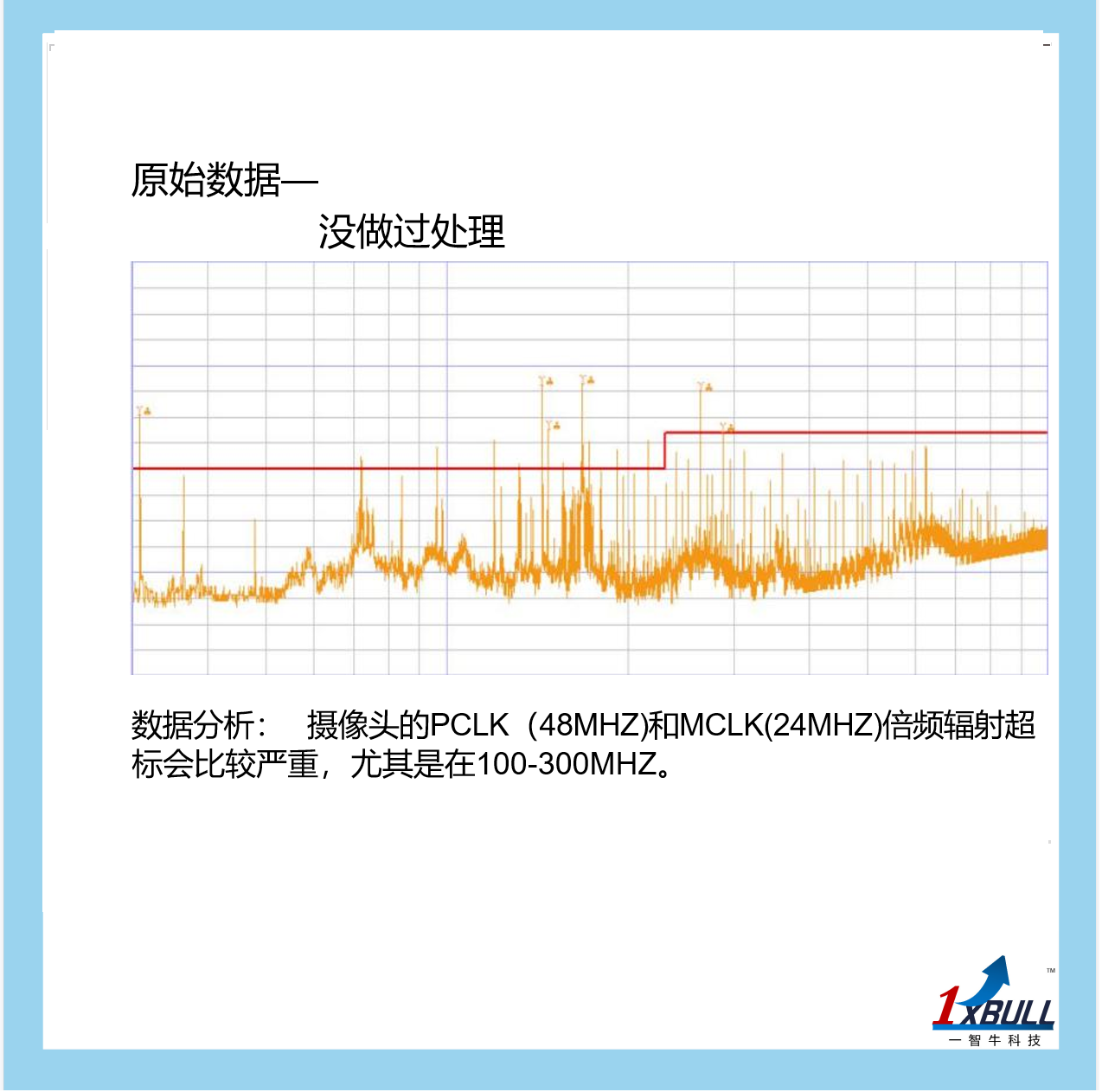

整改前数据

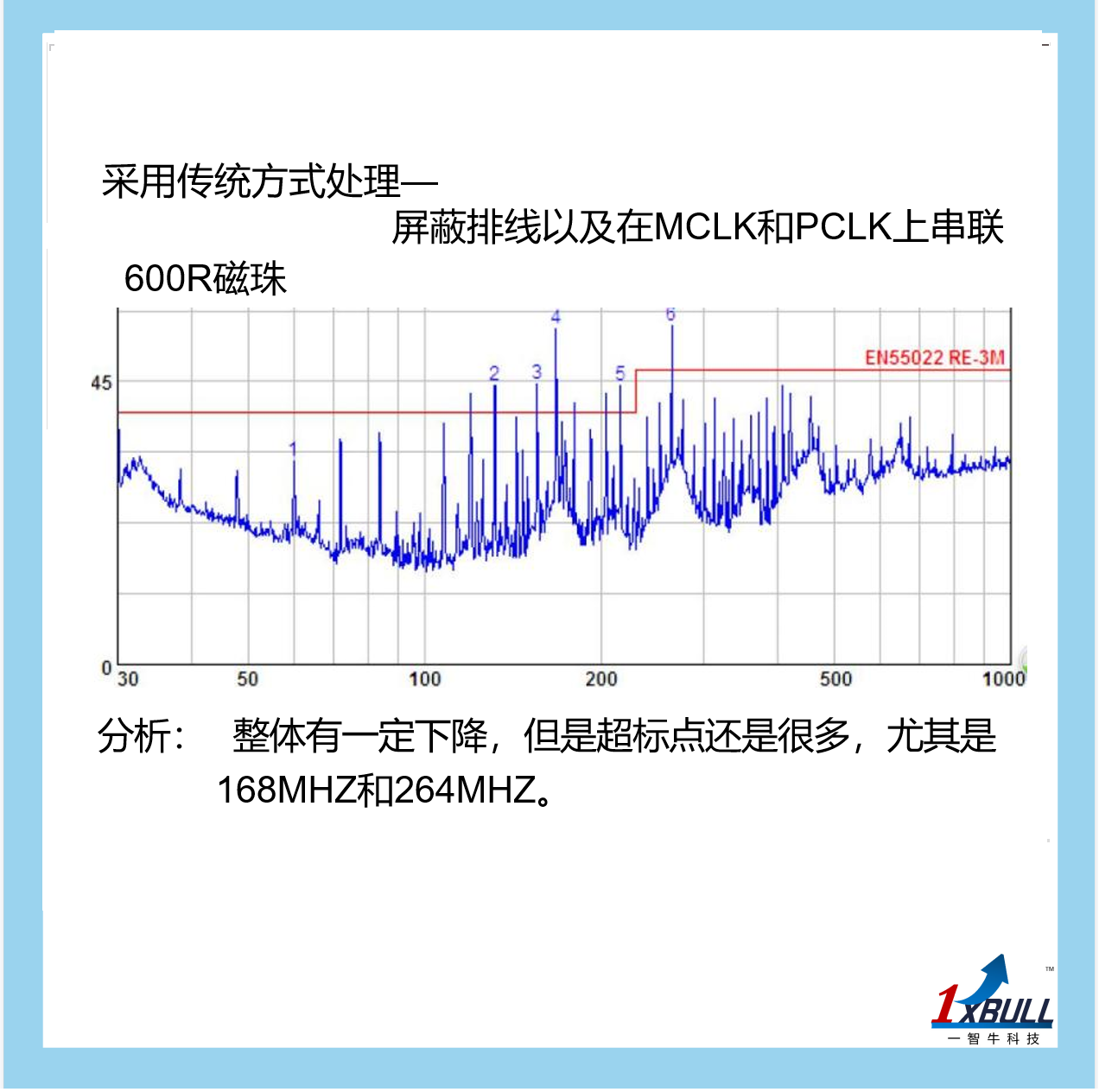

传统方法整改效果

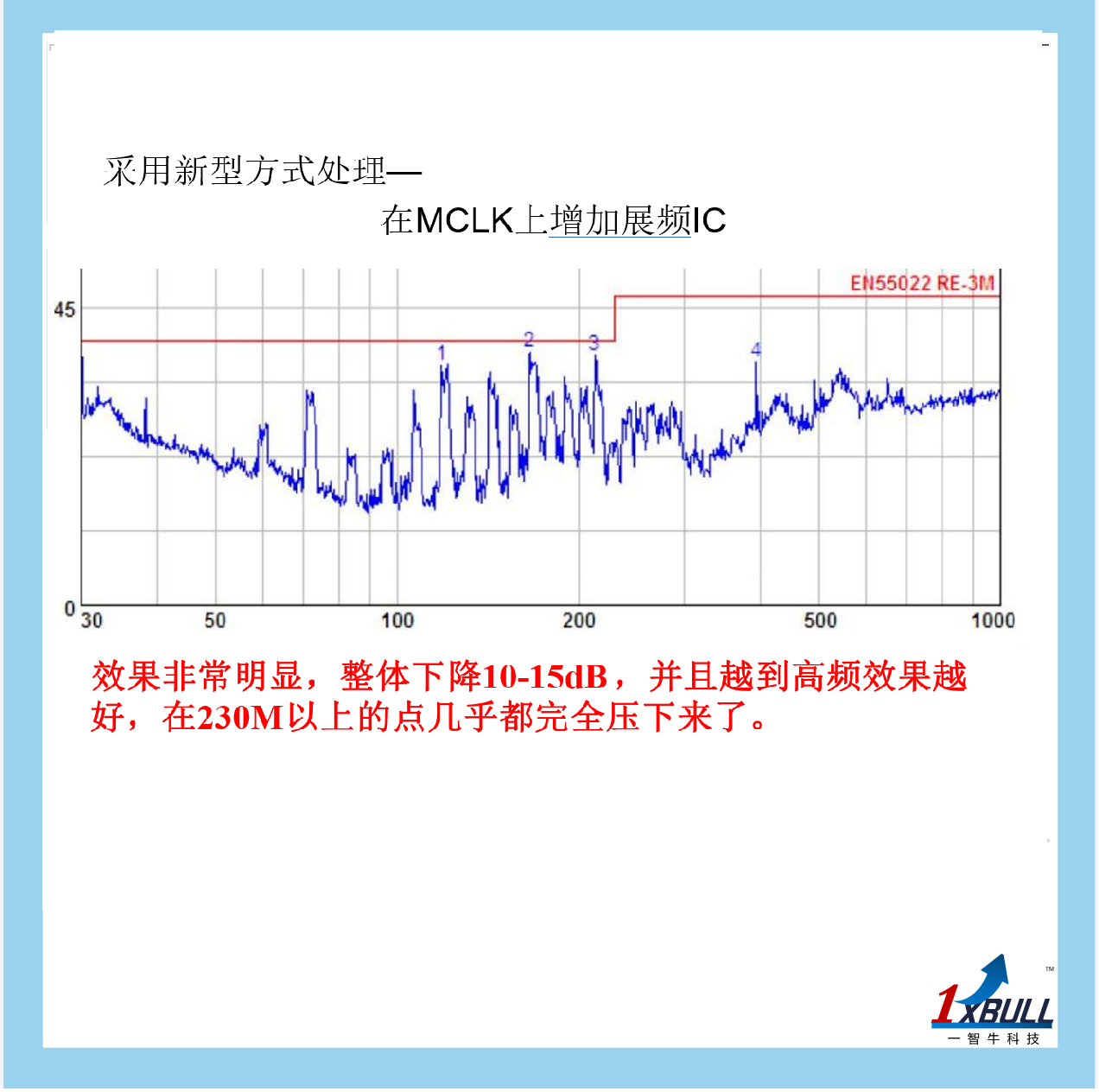

采用扩频IC整改效果
